The David Clark DC PRO-X2 is the first, true crossover headset in aviation - ideal for both general aviation and commercial pilots that prefer the unmatched comfort of a lightweight, rest-on-ear design. The next generation DC PRO-X2 Series retains all the comfort and performance features of the first model series (pilot-acclaimed DC PRO-X headsets), but now with enhanced ANR (active noise reduction) and audio performance.

The headset features excellent Hybrid Electronic Noise Cancelling and Bluetooth® wireless audio for pairing with cell phones, tablets, music players and other Bluetooth® compatible devices.

What is Hybrid ENC? Hybrid Electronic Noise Cancelling features not one, but two microphones - one located on the exterior of the dome and isolated from the speaker (feed-forward) and a second internal microphone placed near the speaker (feed-back). The exterior microphone acquires the noise before it gets to the ear canal. Working in concert with the internal microphone, the signals are then inverted to produce a reverse, anti-noise signal, resulting in unsurpassed active noise reduction performance.

Product features PRO-X2:

·       Enhanced Auto-ShutOff feature virtually eliminates accidental loss of battery power

·       Automatic Gain Control (AGC) for optimum ANR performance in changing, high noise conditions

·       Soft, Outlast® technology, heat absorbing head pad keeps you cool and comfortable in flight

·       Hybrid ENC technology for excellent active noise reduction

·       Plush, rest-on-ear (supra aural), leatherette ear seals reduce heat buildup

·       Rugged, yet lightweight alloy suspension, less than 8 ounces

·       Compact control module with intuitive, multi-function control pad

·       Bluetooth® wireless audio

·       FAA TSO-C139a approved

Technical data PRO-X2 (43105G-01):

Ear coupling - on-the-ear

Hardware - lightweight alloy

Connector type - standard twin plugs

Connection cable - 0.155" (6 mm) OD shielded cable, length approx. 6.9 ft. (2.1 m)

Weight w/o cable - approx. 7.5 oz. (215 g)

Battery life - up to 50 hours (depending on personal usage), 2x AA batteries

Operating temperature - -20°C to +55°C

Operating voltage - 3 VDC (2x AA batteries)

Dome type - ABS

Characteristic SPL - approx. 91 dB SPL (1 kHz, 1 mW) @ maximum volume nominal

Contact pressure - approx. 0.6 lb. (2.7 N)

ENC peak attenuation - 30 dB @ 150Hz

ENC attenuation range - 20 Hz to 1 KHz

Total harmonic distortion (THD) - < 1% - 110 dB SPL (300-3,000 Hz)

Transducer principle - dynamic

Ear impedance - 600 ohms mono / 1200 ohms stereo (each ear)

Ear freq. response - 12-15,000 Hz

Microphone principle - pre-polarized condenser microphone (electret), noise-cancelling

Mic impedance - 150 ohms nominal

Mic sensitivity - 400mV+/-6dB into 150 ohms load @ 1kHz for 114 dB SPL input

Mic freq. response - 150-8,000 Hz

Mic DC supply (V) - 8-16 V, not polarity sensitive

Source resistance - 470 ohms

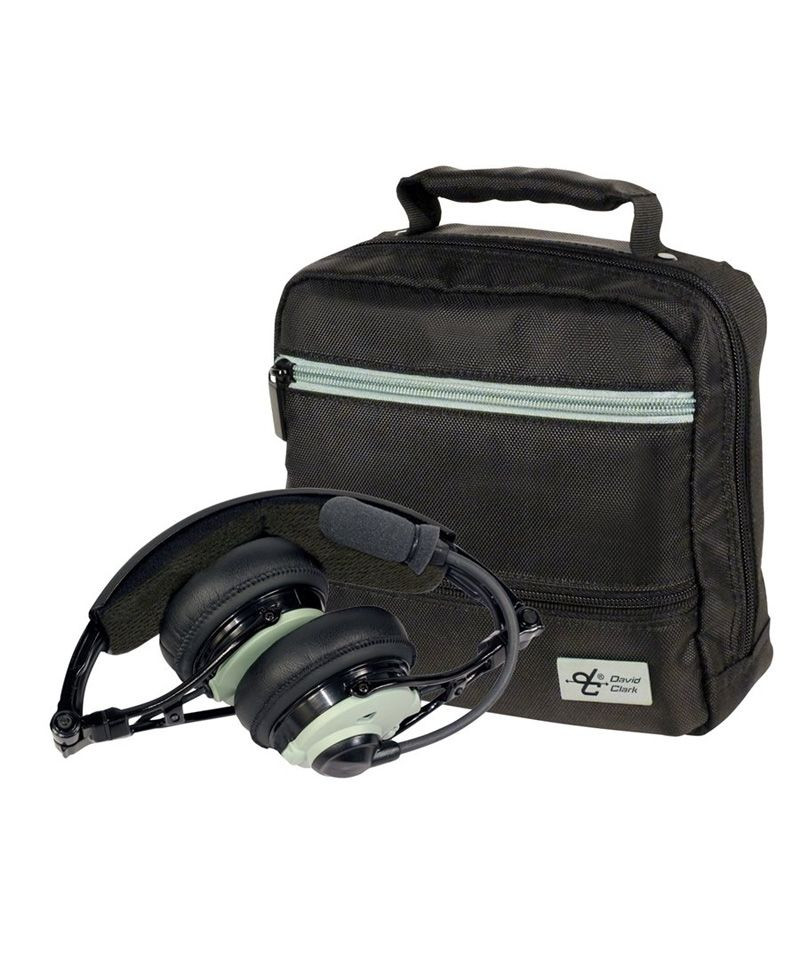

Delivery includes: David Clark PRO-X2 Headset (incl. control module and GA twin plugs), windscreen, headset bag, user manual.
