Double swivel arm with tele pole (approx. 200 mm) and base (approx. 225 mm) - Octagon connecting arm, round base plate

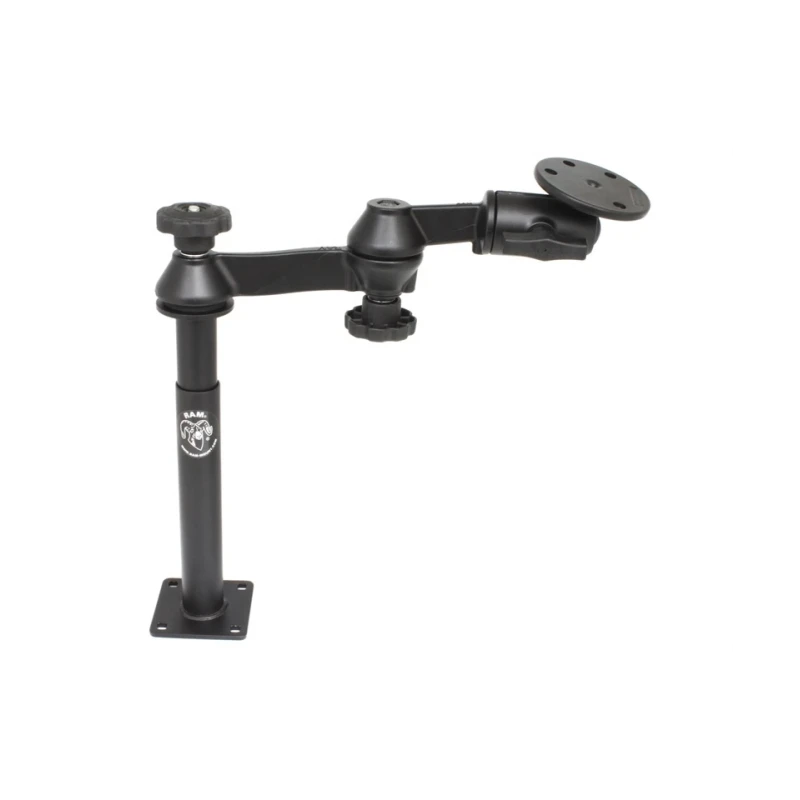

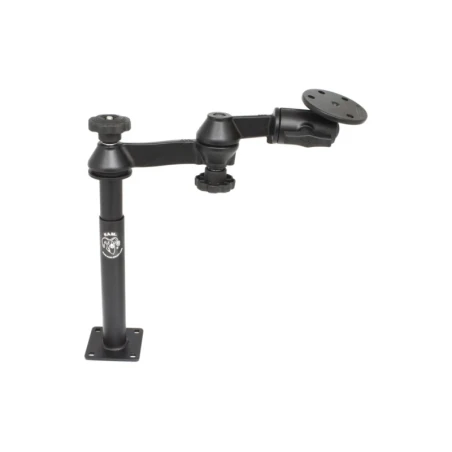

The RAM MOUNT double swivel arm construction - RAM-VP-SW1-89-240 - consists of a Tele-Pole shaft (approx. 23 cm), a Tele-Pole tube (approx. 20 cm), a double swivel arm and a round base plate with C-ball (1.5 inch). The Tele-Pole shaft hasa square base plate (9x9 cm) on the underside with pre-drilled holes in all four corners.

The height can be individually adjusted. To do this, you must tighten the locking screw at the upper end according to your height setting. The locking screw on the swivel arm allows you to select almost any viewing angle for your electronic devices.

The length of the swivel arm is approx. 30 cm. The round base plate with a diameter of approx. 9 cm and AMPS hole pattern enables connection to numerous RAM MOUNT device holders (e.g. laptop and printer holders).

Total height: approx. 25 cm
Arm length (double swivel arm): approx. 30 cm
Base plate dimensions: 9 x 9 cm (with pre-drilled holes at each corner)
Material: powder-coated aluminium
Ball diameter: 3.81 cm (1.5 inch, C-ball)
Colour: black
