Assembly set - 2x round base plate (AMPS), long connecting arm

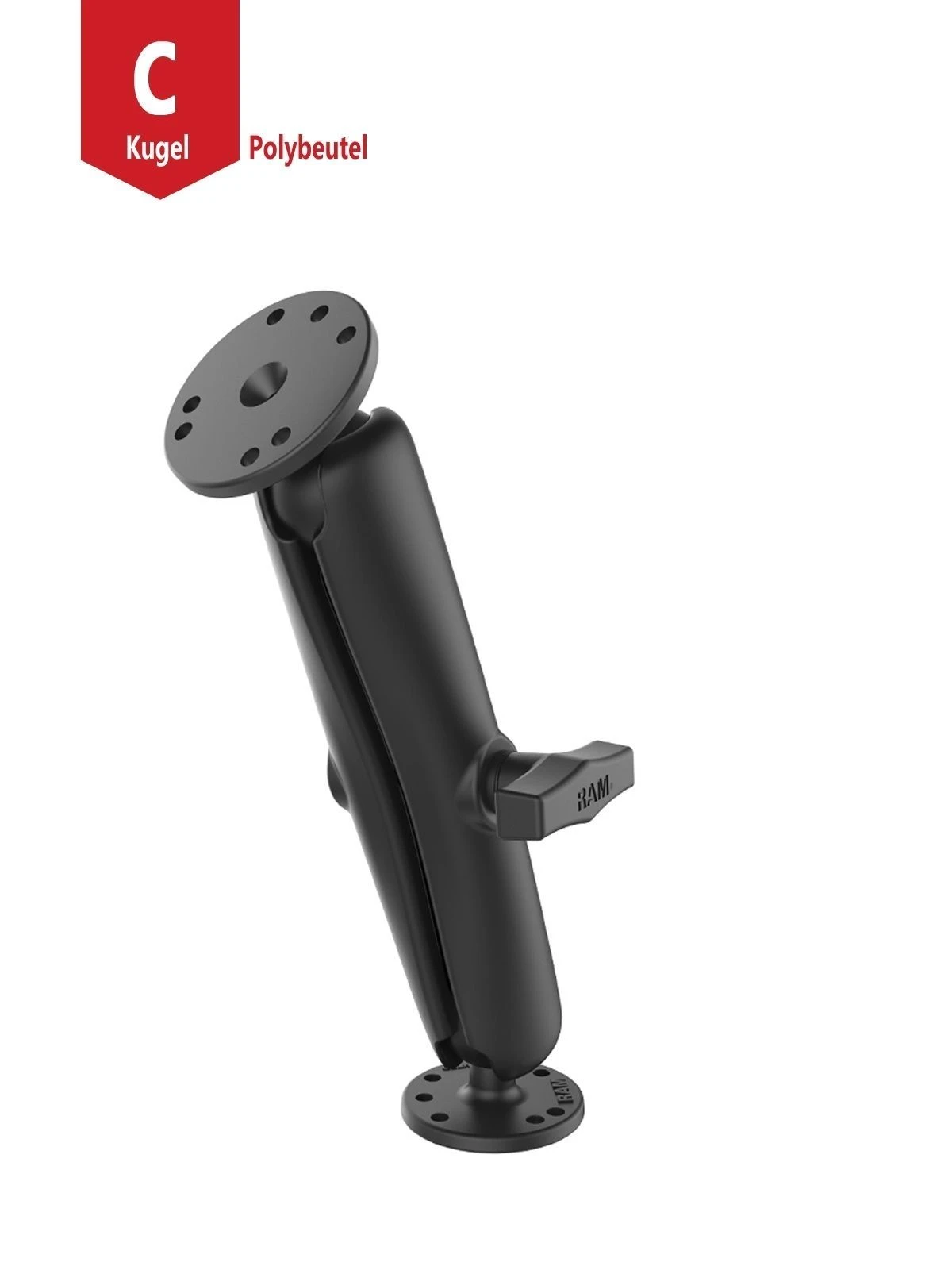

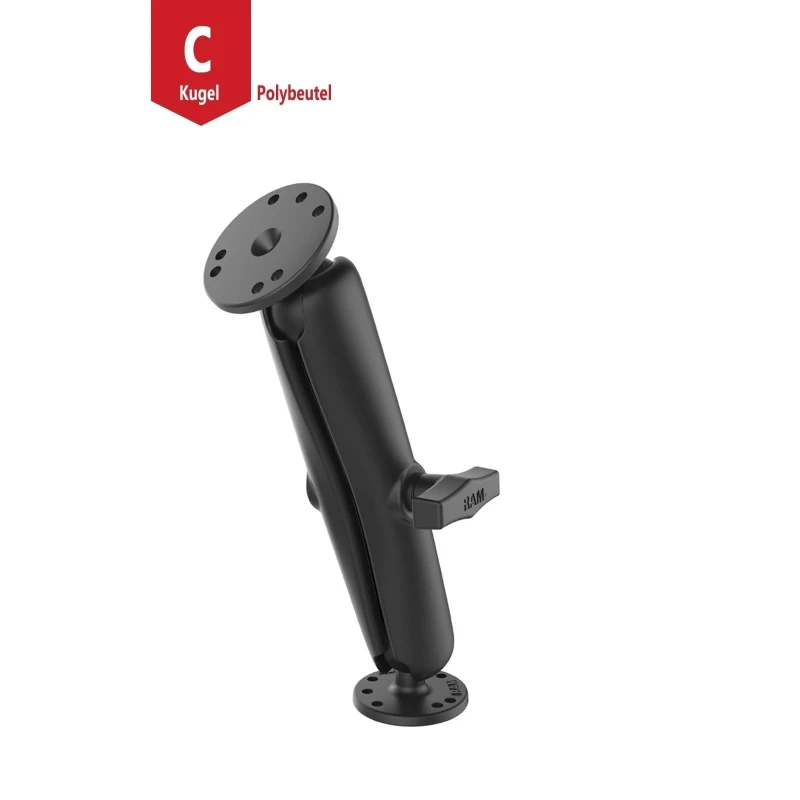

This complete RAM Mounts C-ball set - RAM-101U-D - consists of a long connecting arm (approx. 230 mm) and two round base plates with AMPS hole pattern. The patented ball system in conjunction with the armenables numerous mounting solutions with different viewing angles. Brackets with C-balls (1.5 inch) are suitable for device weights up to max. 4.25 kg.

Technical data of the individual components:

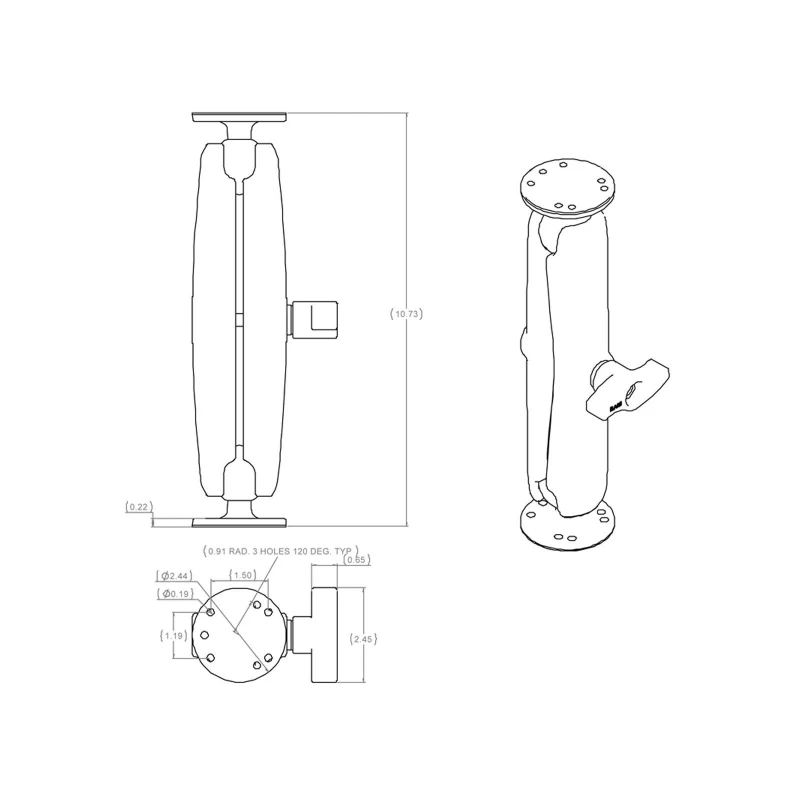

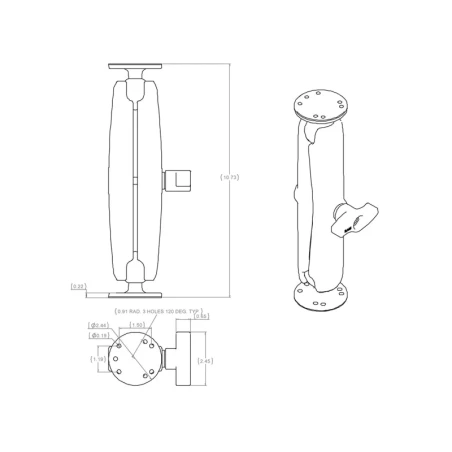

-Connecting arm: 231.78 mm total length, 203.2 mm base-to-base length, mounts for C-balls (1.5 inch)

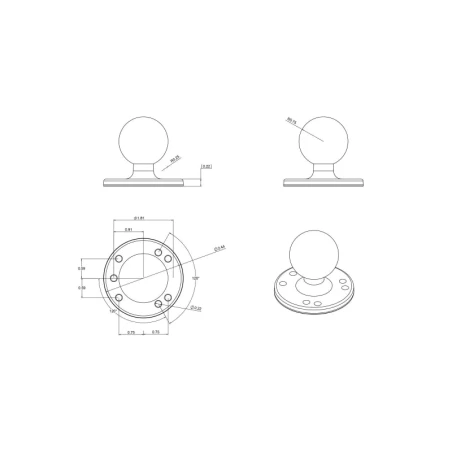

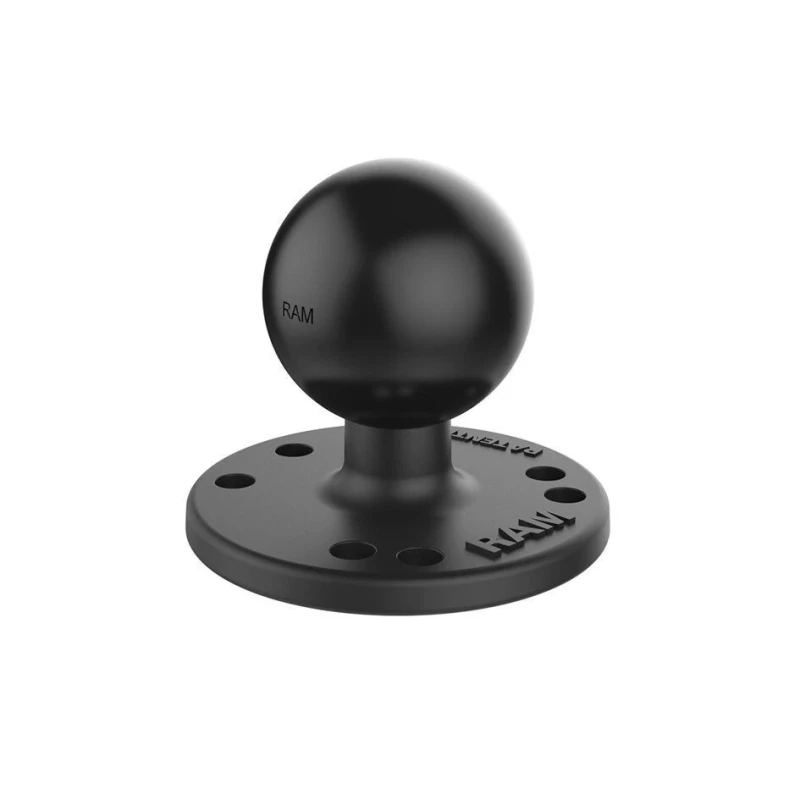

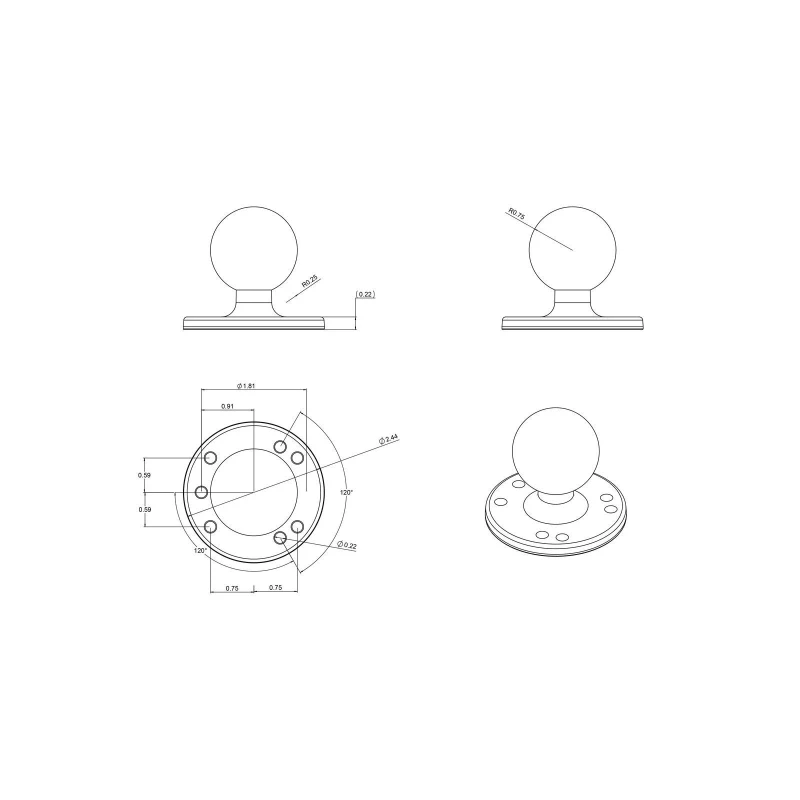

-Base plates: 63.5 mm base plate diameter, C-ball (1.5 inch), AMPS hole pattern

Material: powder-coated aluminium
Ball diameter: 38.1 mm (1.5 inch, C-ball)
Colour: black
Weight: approx. 744 g

Packaging: polybag
