Mounting set - (1 inch), round base plate (AMPS), centre connecting arm, universal adapter plate

RAM Mounts mounting set based on the B-ball system. The set canbe mountedon almost all vertical and horizontalsurfaces.

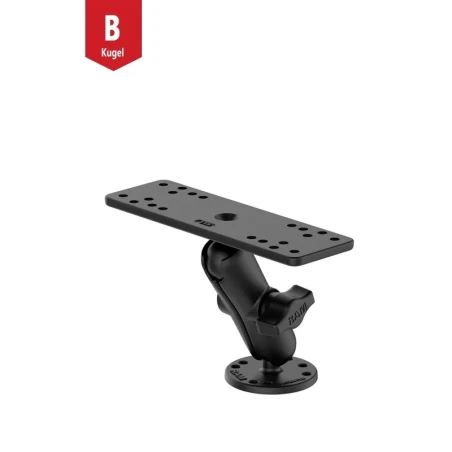

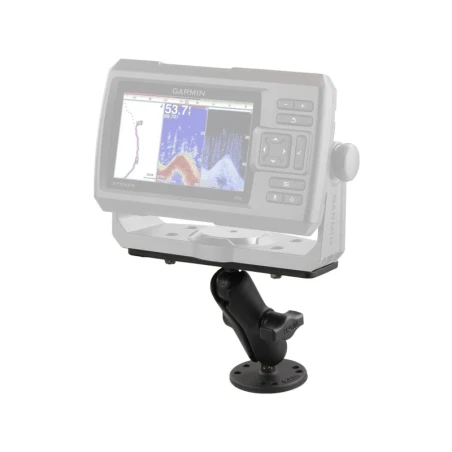

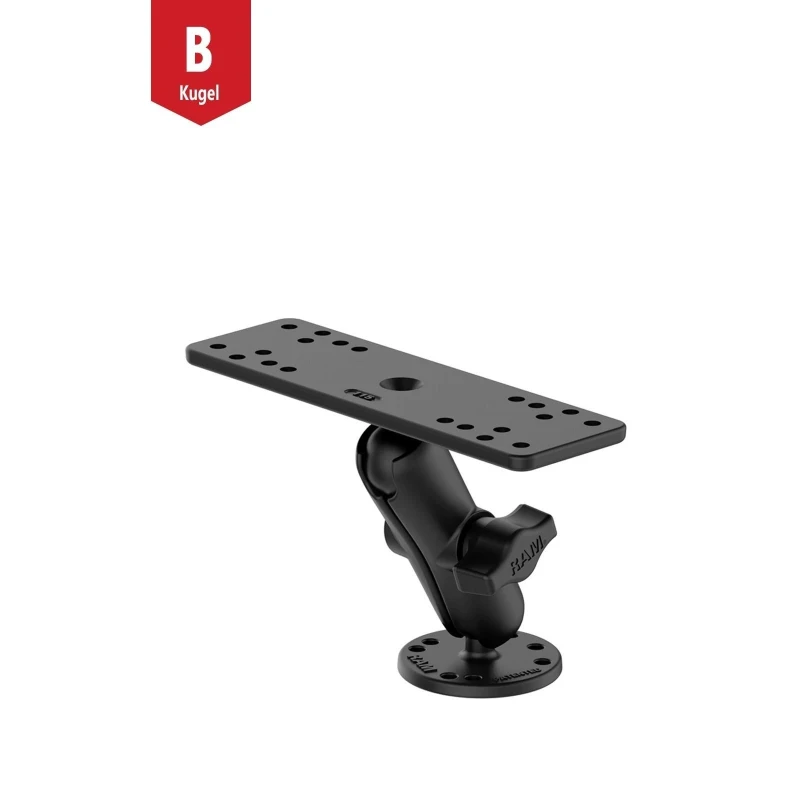

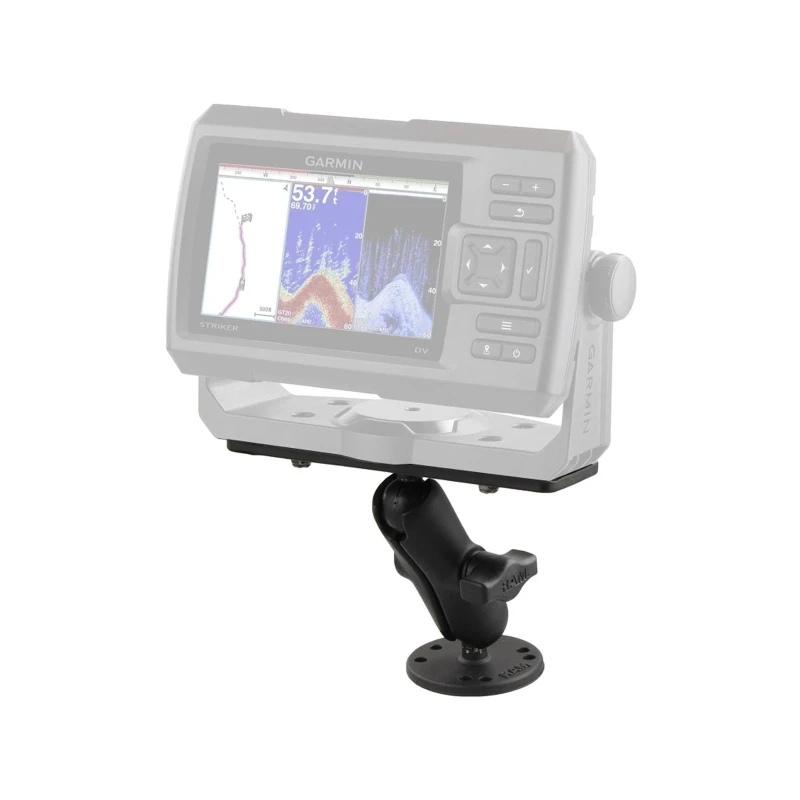

The set consists of a round base plate, a centre connecting arm and a universal plate for various marine devices. The round base plate has two hole patterns - AMPS 4-hole and 120° 3-hole.

The patented ball-and-arm system ensures enormous flexibility and makes the RAM Mounts an indispensable companion in numerous areas of application.

The weight capacities are based on normal application environments.

Material: powder-coated aluminium
Ball diameter: 25.4 mm (1 inch, B-ball)
Weight capacity: up to max. 900 g (but depending on the respective application environment)
Dimensions round base plate: 63.5 mm diameter (AMPS 4-hole, 3-hole à 120°)
Dimensions connecting arm: 94.74 mm total length, 76.2 mm base-to-base
Dimensions universal plate: base area approx. 159 x 51 mm, various hole patterns
Colour: black
Total weight: approx. 355 g
