VESA set - VESA plate (75x75 mm hole pattern) centre connecting arm, VESA plate (75x75 and 100x100 mm hole pattern)

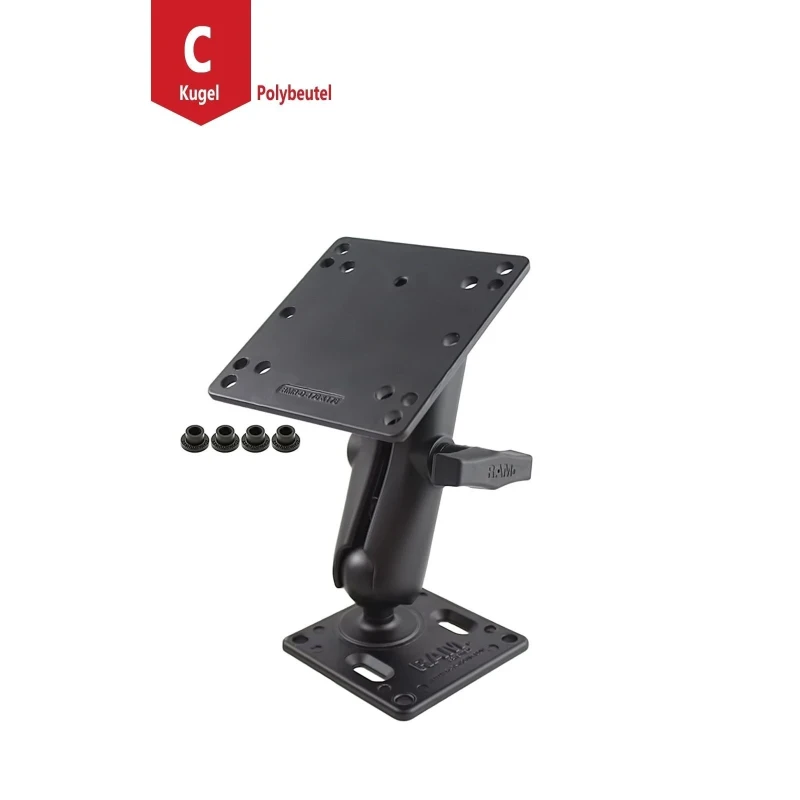

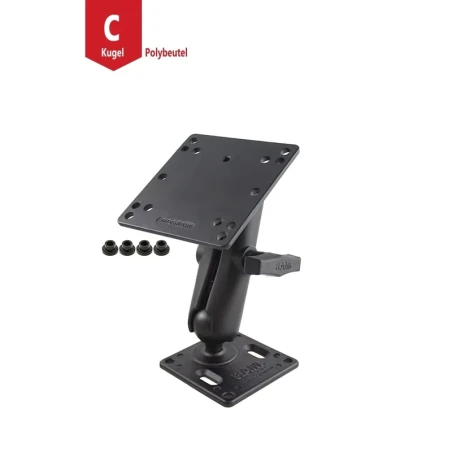

This RAM mount set consists of a centre connecting arm (approx. 140 mm) and two VESA plates with different footprintsand hole patterns. One VESA plate has a base area of 92.08 x 92.08 mm and a VESA hole pattern of 75 x 75 mm. The second VESA plate has a base area of 120.65 x 120.65 mm and has two VESA hole patterns, one 75 x 75 mm and the other 100 x 100 mm. On both VESA plates, the C-balls (1.5 inch) are positioned at right angles to the base plate. The patented ball and arm system provides a wide range of alignment options.

Total height of the set: approx. 186.69 mm
Length of connecting arm: approx. 140 mm

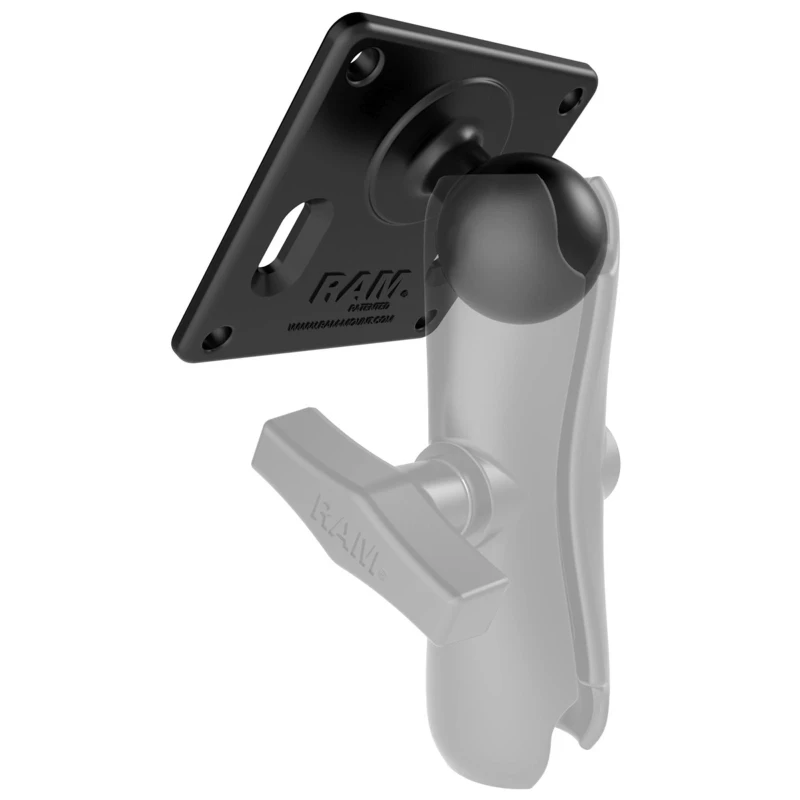

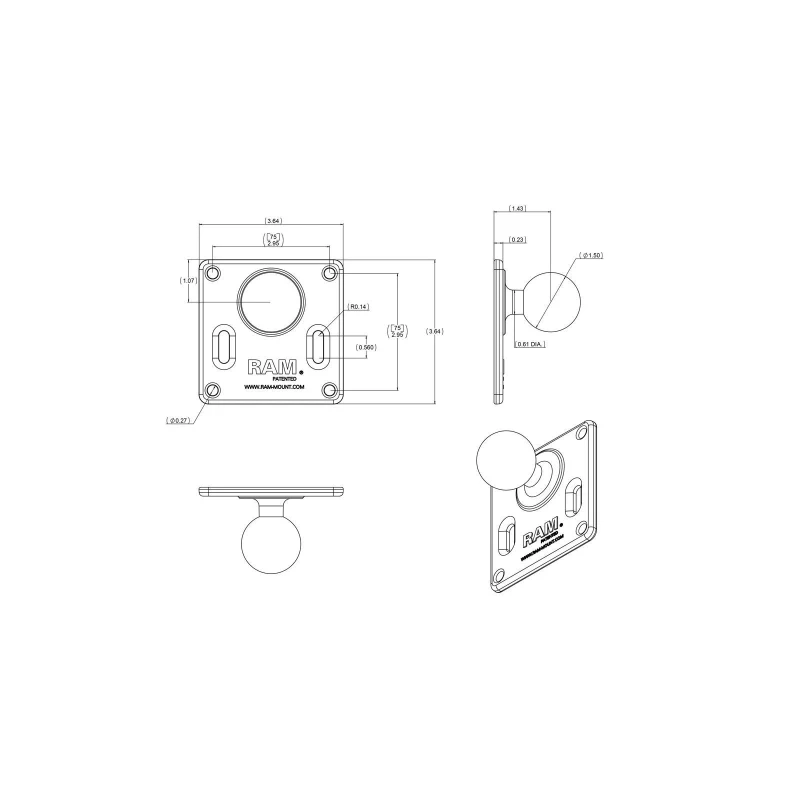

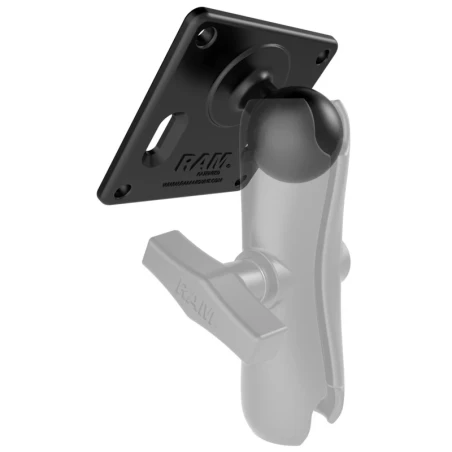

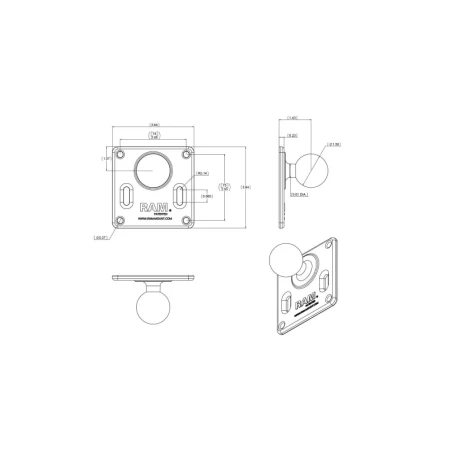

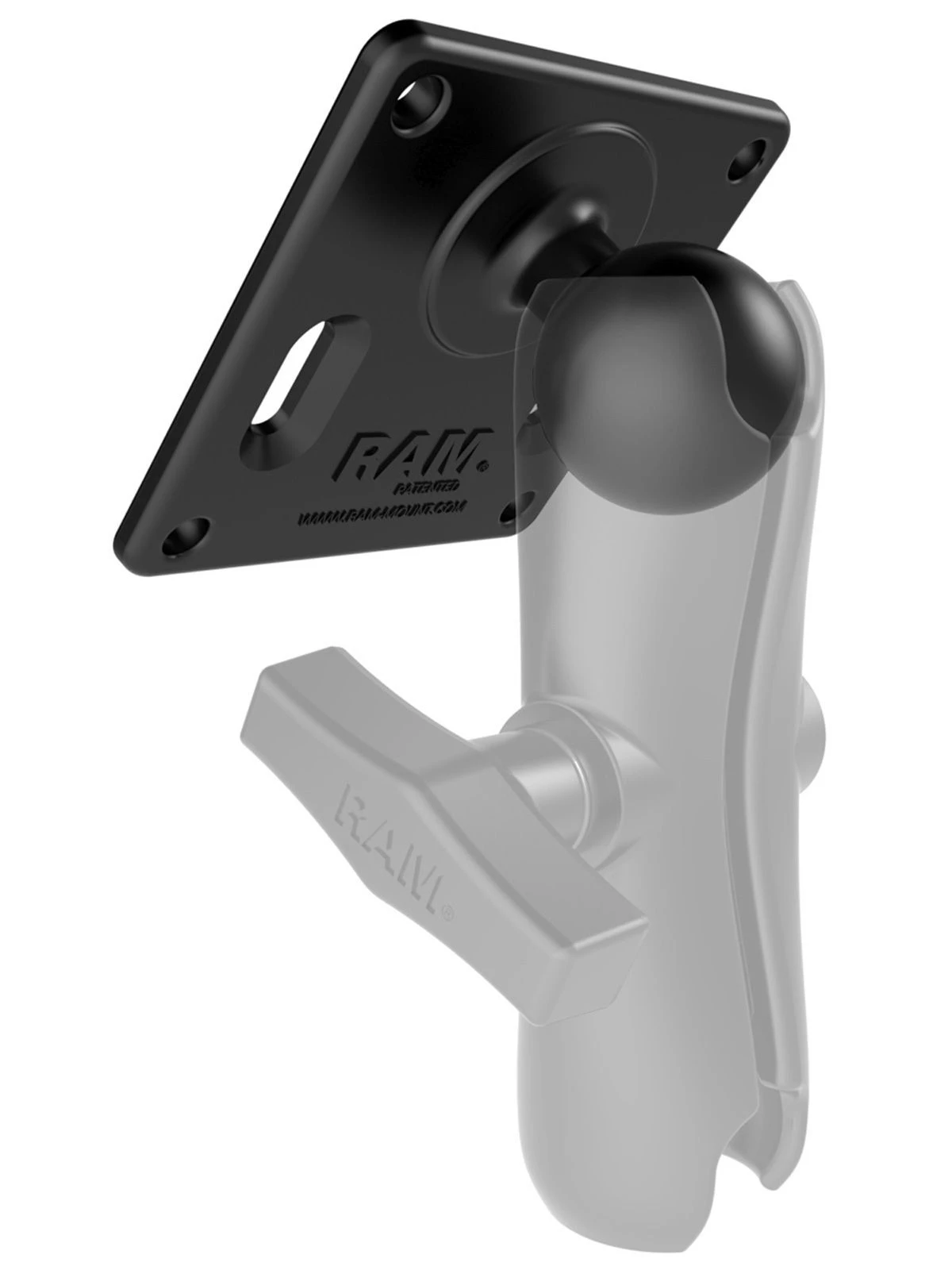

VESA plate1: 92.08 x 92.08 mm base area, 75 x 75 mm hole pattern
VEAS plate 2: 120.65 x 120.65 mm base area, 75 x 75 mm and 100 x 100 mm hole pattern
Material: powder-coated aluminium
Ball diameter: 38.1 mm (1.5 inch, C-ball)
Colour: black
Weight: approx. 757 g

Packaging: polybag
