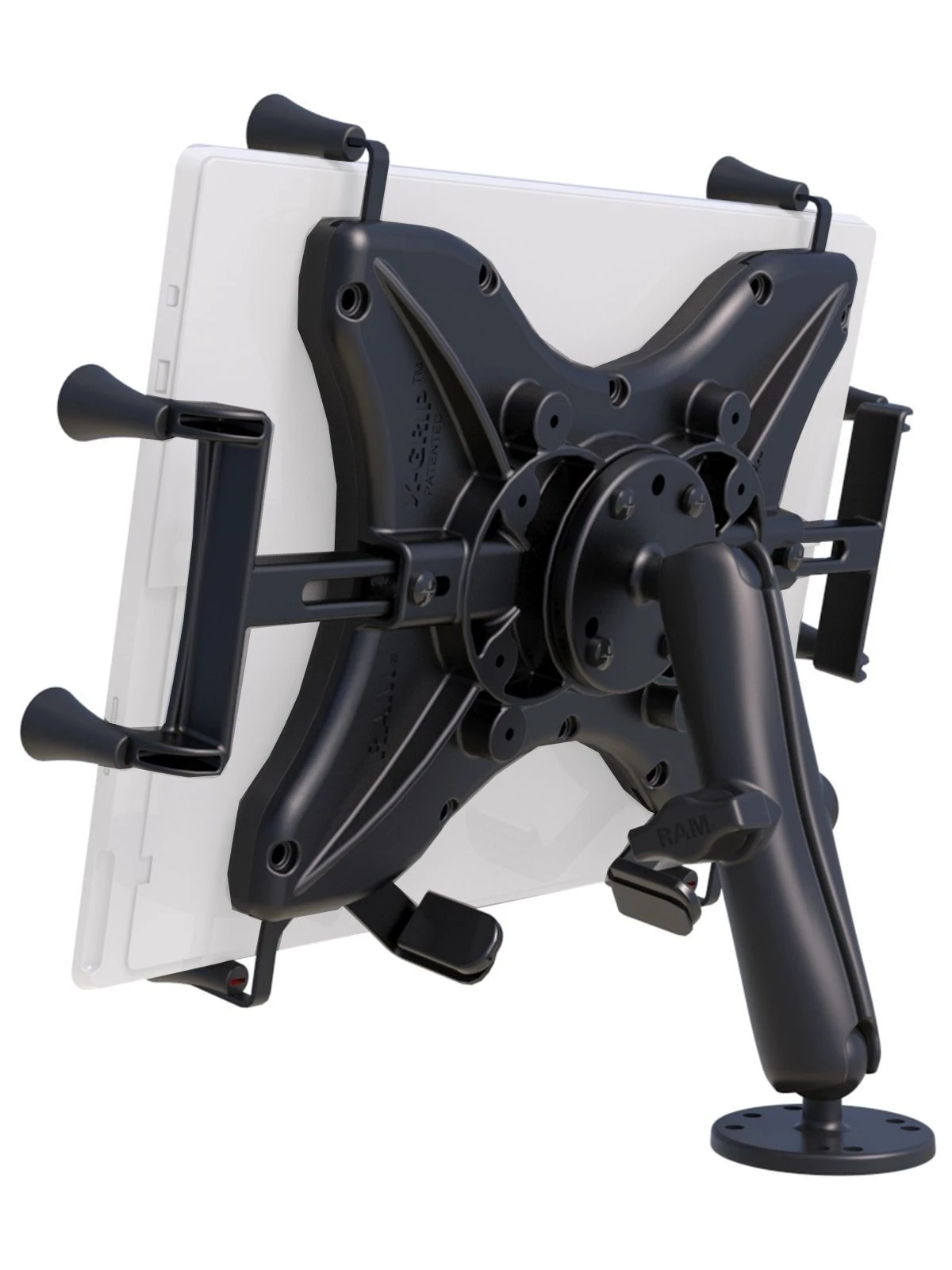

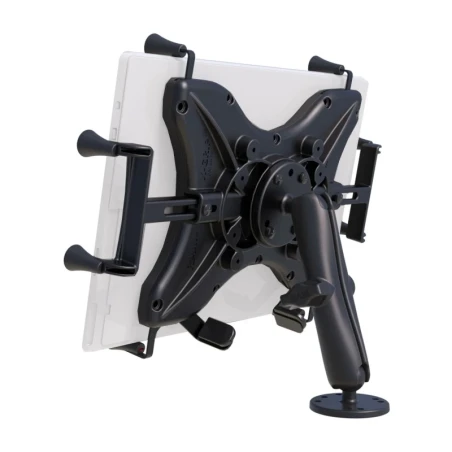

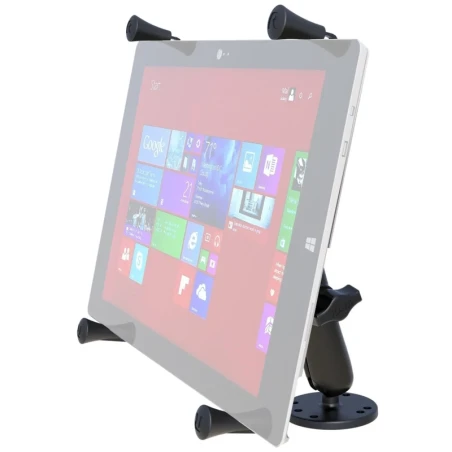

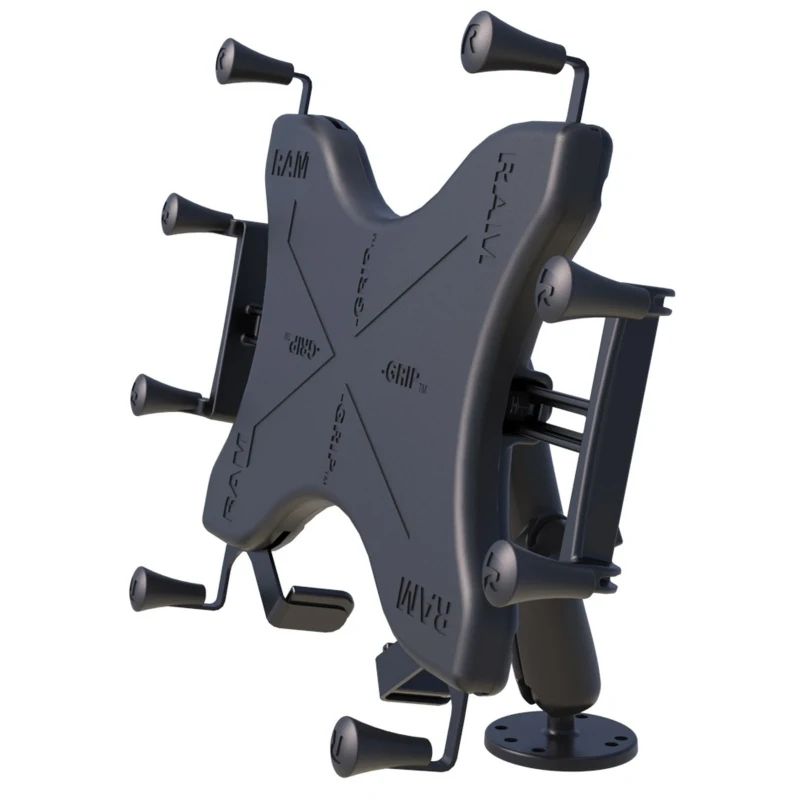

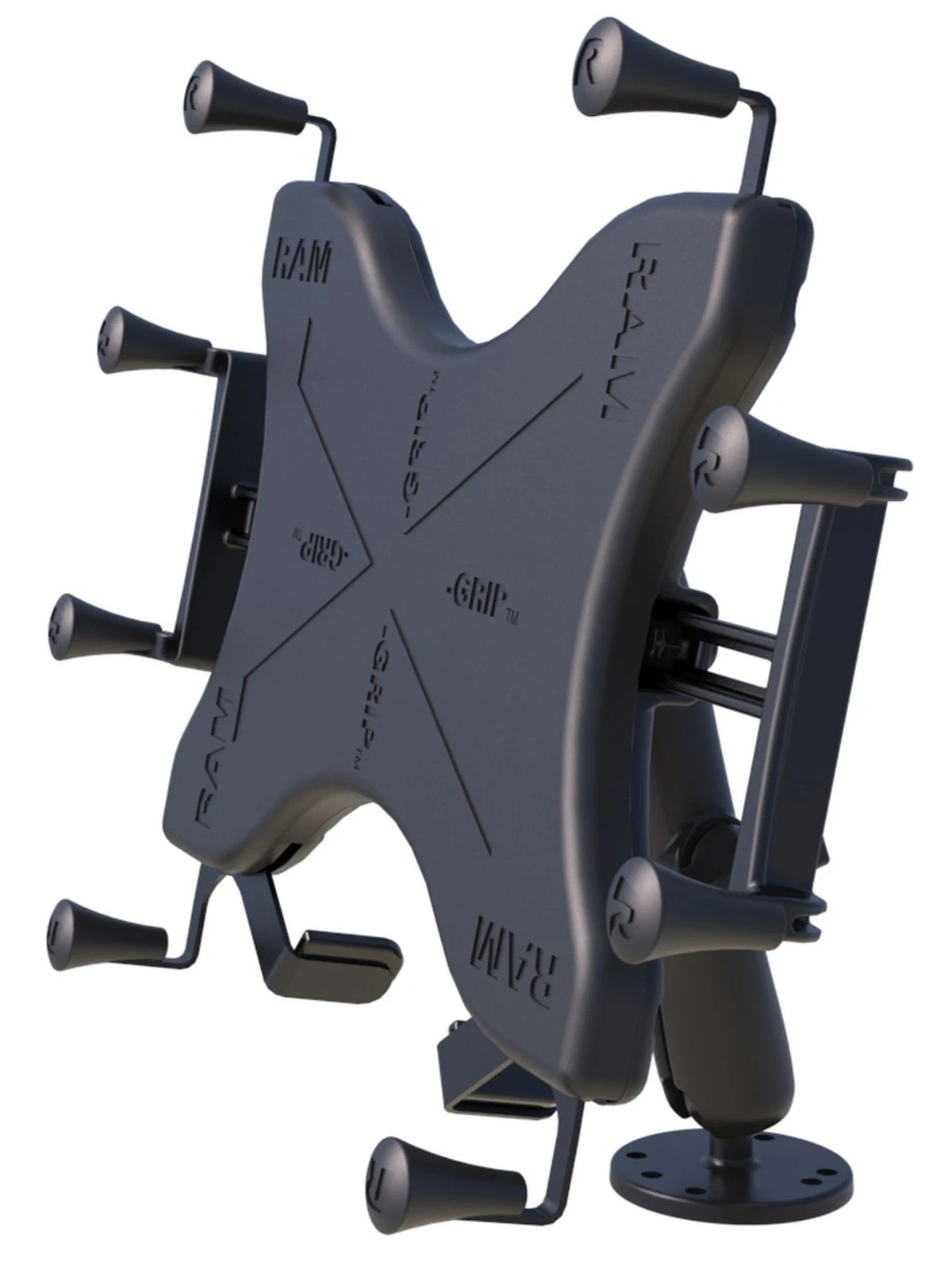

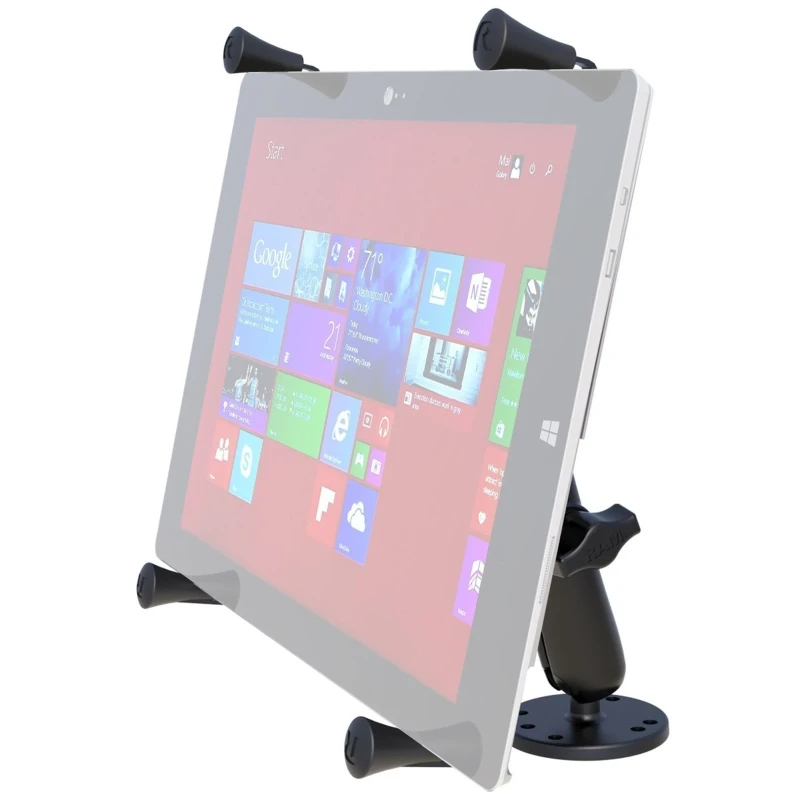

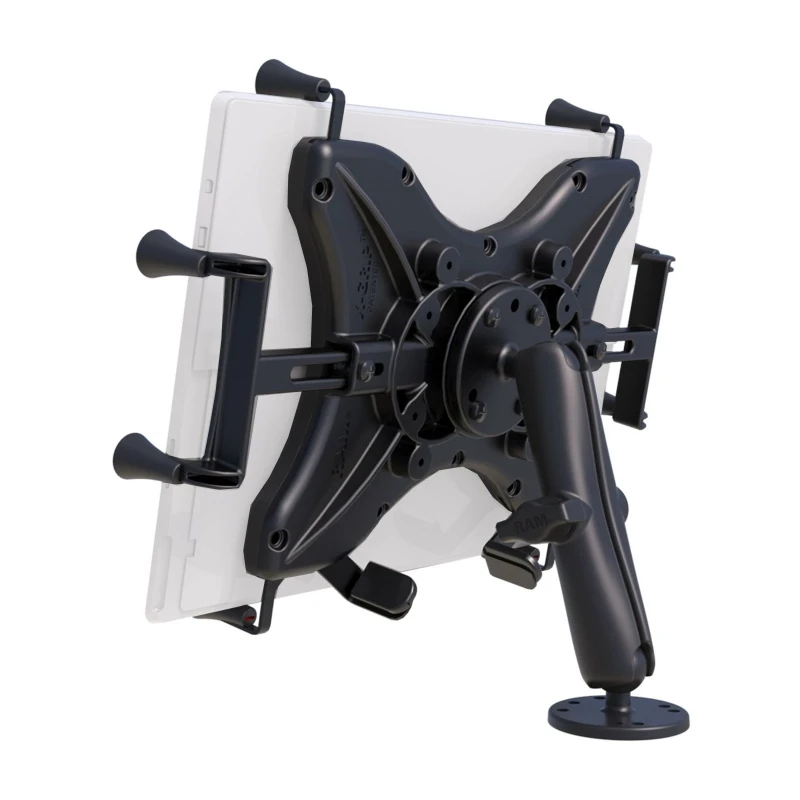

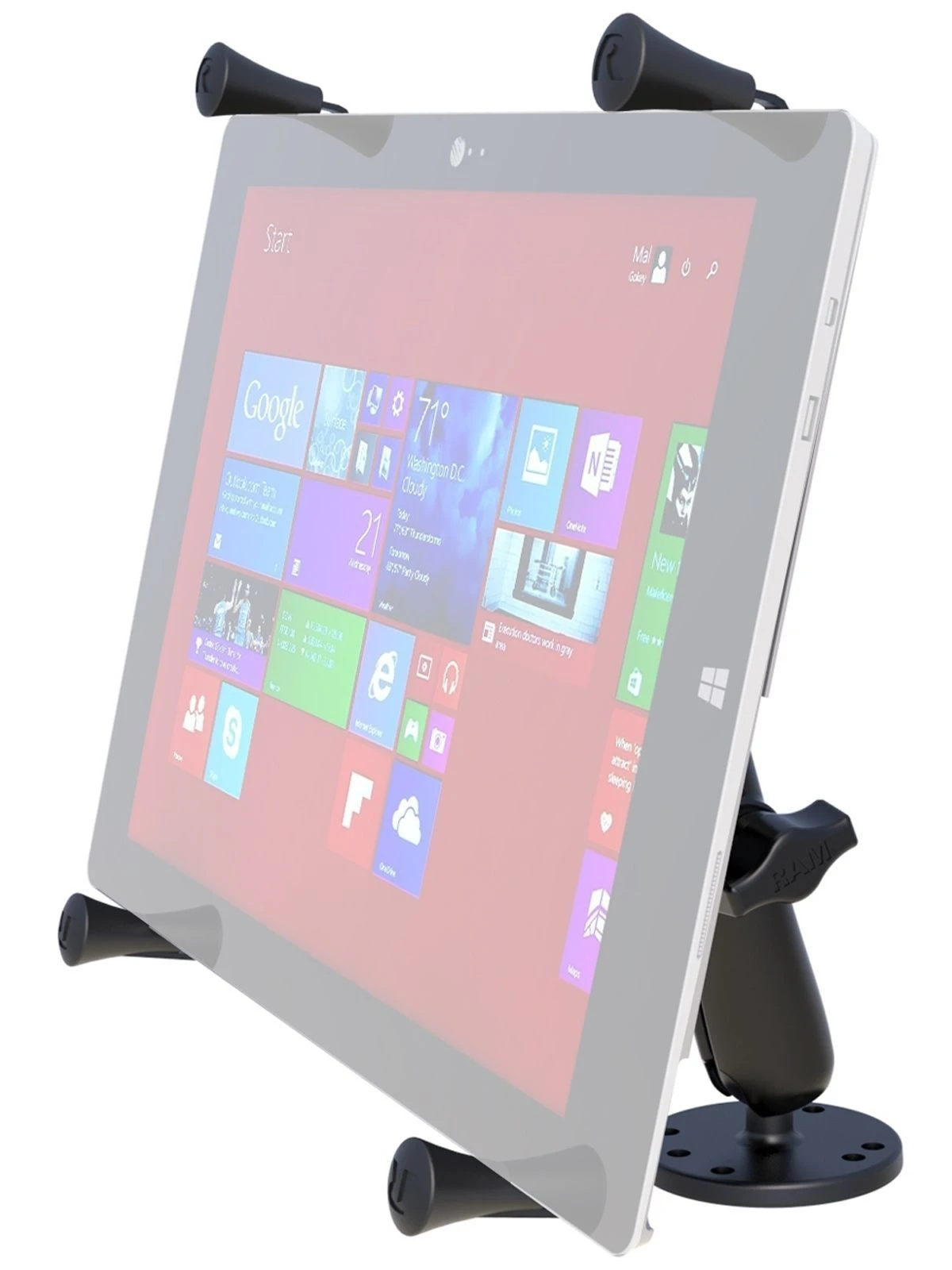

X-Grip surface mount for tablets (12 inch) - (1 inch), round base plate (AMPS), long connecting arm

This stable and flexible RAM Mounts X-Grip surface mountfor 11-12 inch tablets is suitable for mounting on smooth, horizontal and vertical surfaces. The RAM Mounts X-Grip system is spring-loaded and uses rubber fingers and lateral holding arms to hold the devices securely without hiding them behind covers. This ensures access to almost all interfaces.

The patented ball-and-arm system (B-ball, 1 inch) of the robust RAM products ensures optimum positioning of the mount. Setting a new viewing angle is done in no time at all, as is fixing or removing the devices.

Product features at a glance::

-For mounting on smooth, horizontal and verticalsurfaces

-Versatilepositioning thanks to patented ball-and-arm system

-X-Grip mounting bracketfor 11-12 inch tablets

-Easy handling after assembly

-X-Grip holding arms covered withsoft rubber caps

X-Grip check for tablet size: height max. 260.4 mm (using the adjustable additional mounting arms), width 184.4-222.3 mm, depth max.22.2 mm mm

Components of the RAM Mounts bracket: 2x round base plates (AMPS and 120° hole pattern, diameter 63.5 mm), long connecting arm (approx. 150 mm), X-Grip mounting bracket incl. Additional holding arms

Materials: powder-coated aluminium (base plates, arm), stainless steel components (X-Grip arms), high-strength composite material (X-Grip housing, arm twist lock), rubber

Hole pattern of base plates: AMPS 4-hole, 120° 3-hole

Ball size: B-ball, 1 inch 25.4 mm

Total weight: approx. 850 g

Colour: mostly black

Note: devices shown are not included in the scope of delivery!
