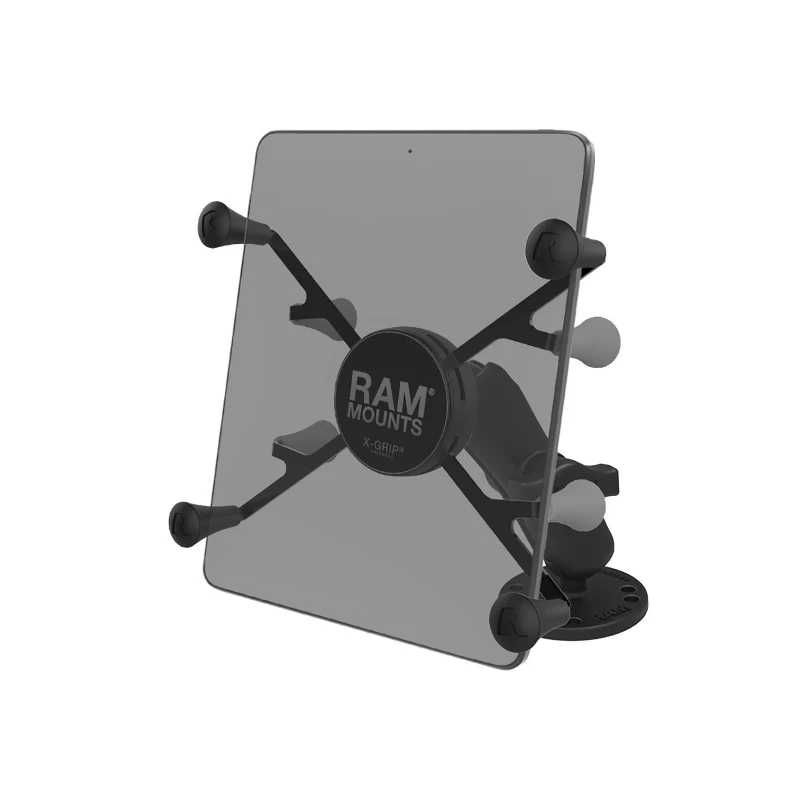

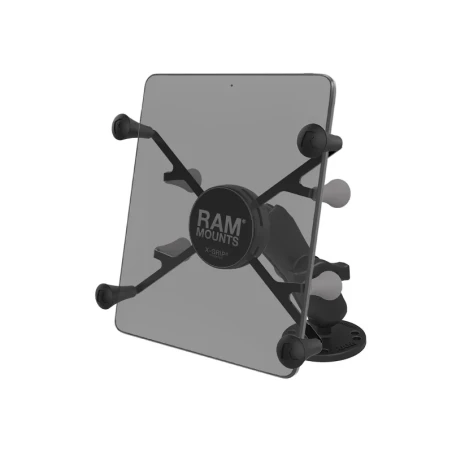

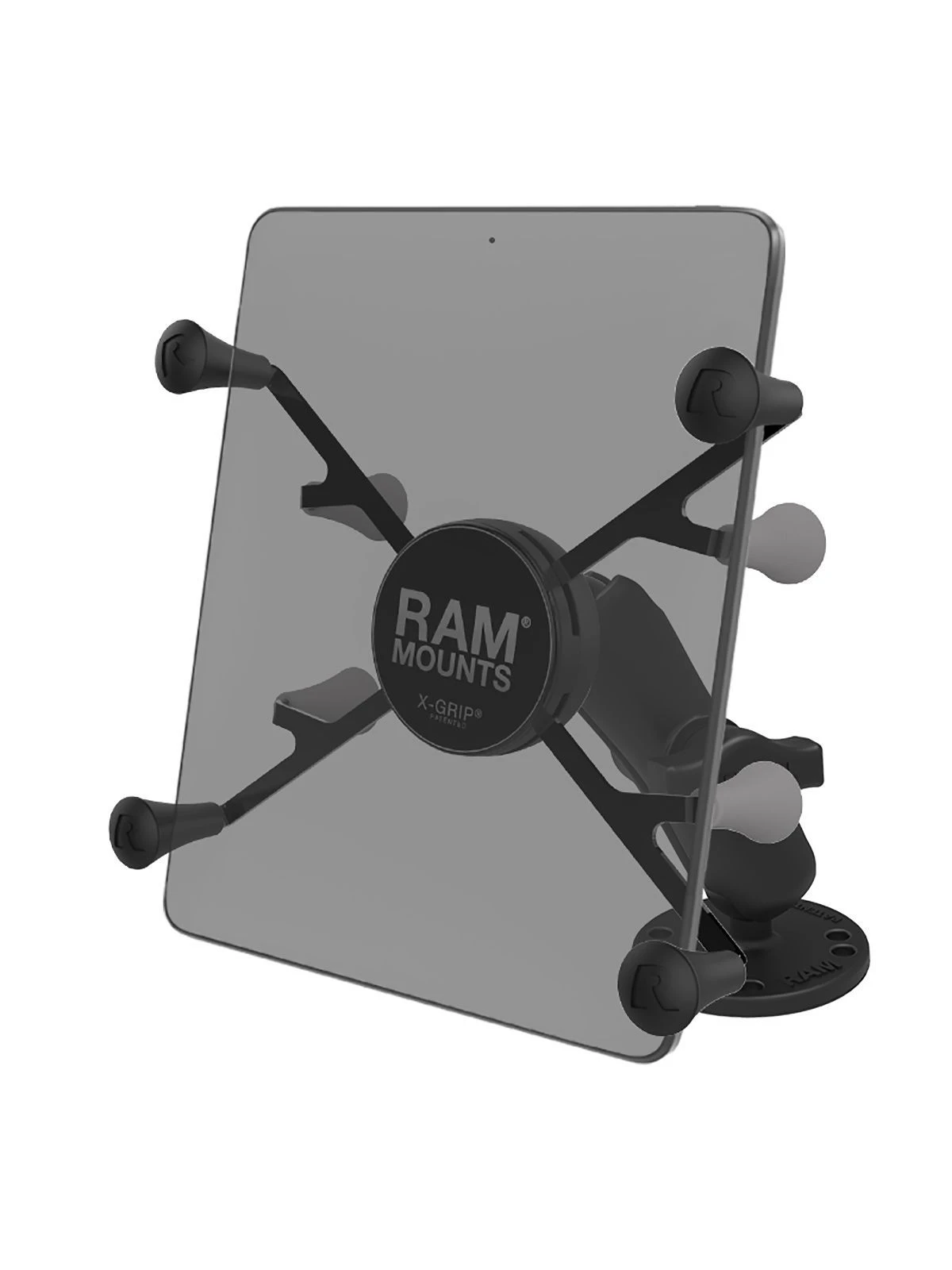

X-Grip surface mount for tablets (7 inch) - (1 inch), round base plate (AMPS), centre connecting arm

The RAM Mounts X-Grip surface mountfor 7-8 inch tablets based on B-balls (1 inch) is suitable for horizontal and vertical mounting on smooth surfaces. The RAM Mounts X-Grip system is tension spring supported and fitted with rubber end caps, ensuring a secure hold without hiding the devices behind covers. The patented ball-and-arm system allows the mount to be individually adjusted. For activities with vibration effects, it is strongly recommended to use the enclosed rubber safety device. The RAM Mounts X-Grip bracket is suitable for most 7-8 inch tablets or according to the following dimensional requirements:

-Width from 63.5 to 146.1 mm

-Depth up to max. 22.2 mm

Product features X-Grip retaining clip:

-Incl. rubber lock

-Spring-supportedtensioning of the holding arms

-Incl. rubber end caps

-Versatile and universally applicablefor most 7-8 inch tablets

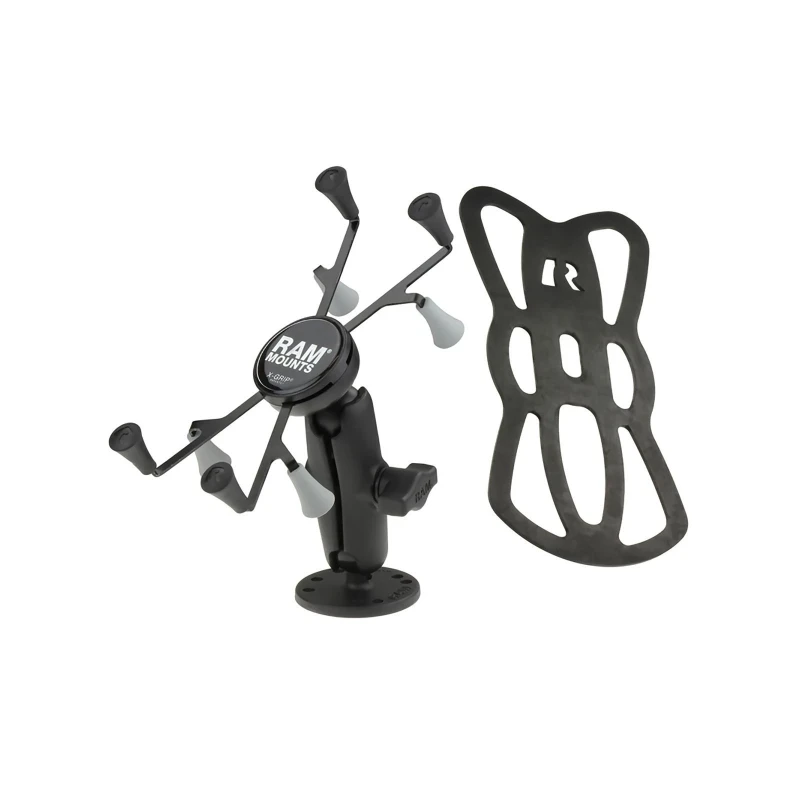

The complete RAM Mounts X-Grip surface mount consists of:

-1x round base plate, AMPS hole pattern, 63.5 mm diameter

-1x medium connecting arm (approx. 90 mm long)

-1x X-Grip retaining clip (as described above)

Material: powder-coated aluminium, high-strength composite material, steel components, rubber
Ball diameter: 25.4 mm (1 inch, B-ball)
Colour: black
Weight: approx. 305 g

Note: Mounting hardware anddevices shownare not included in the scope of delivery!
