AeroShell Fluid 12 is a low volatility synthetic ester oil used in aircraft instruments and also for the general lubrication of aircraft. It is oxidation and corrosion inhibited, and possesses good high and low temperature characteristics.
Applications: AeroShell Fluid 12 is used for general aircraft lubrication as well as for aircraft gyro instrument gimbal bearings, separately lubricated high speed turbines and compressors, aircraft air cycle equipment and electronic equipment. AeroShell Fluid 12 is particularly suitable for use when an oil with a low evaporation rate is required at high and low temperatures. AeroShell Fluid 12 is a synthetic oil and it should not be used in contact with incompatible seal materials such as neoprene or natural rubber. Suitable seal material include Fluorocarbon (Viton).
Specifications AeroShell Fluid 12:
- U.S. Approved - MIL-PRF-6085D
- British Equivalent - DEF STAN 91-49
- French Approved - AIR 3511/A
- NATO Code O-147
- Joint Service Designation Equivalent OX-14
|
Properties |
MIL-PRF-6085D |
Typical |
|
Oil Type |
--- |
Synthetic Ester |
|
Kinematic viscosity mm2/s |
|
|
|
Flashpoint Cleveland Open Cup (°C) |
185 min. |
220 |
|
Pourpoint (°C) |
-57 max. |
below -60 |
|
Total acid number mgKOH/g |
--- |
0.20 |
|
Relative Density @ 15.6/15.6°C |
--- |
0.925 |
|
Evaporation loss in 22 hrs @ -120°C (%m) |
1.80 max. |
1.50 |
|
ASTM colour |
--- |
< 0.5 |
|
Oxidation & corrosion stability 168 hrs @ 135°C |
|
|
|
Low temperature stability |
must pass |
passes |
|
Corrosivity |
must pass |
passes |

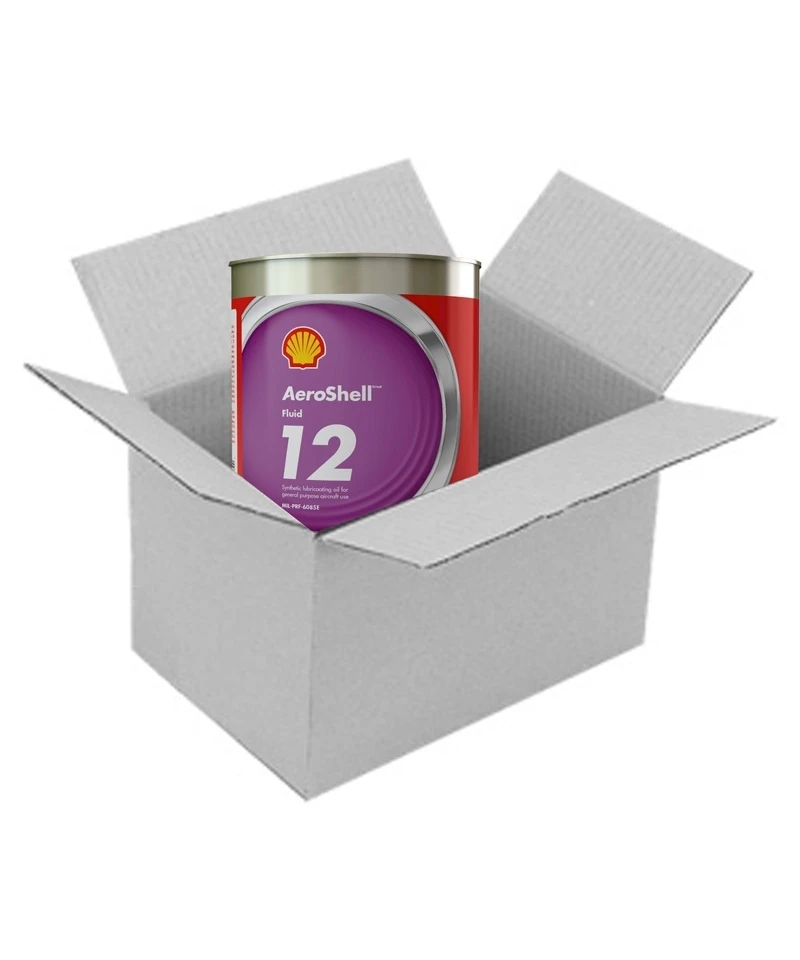

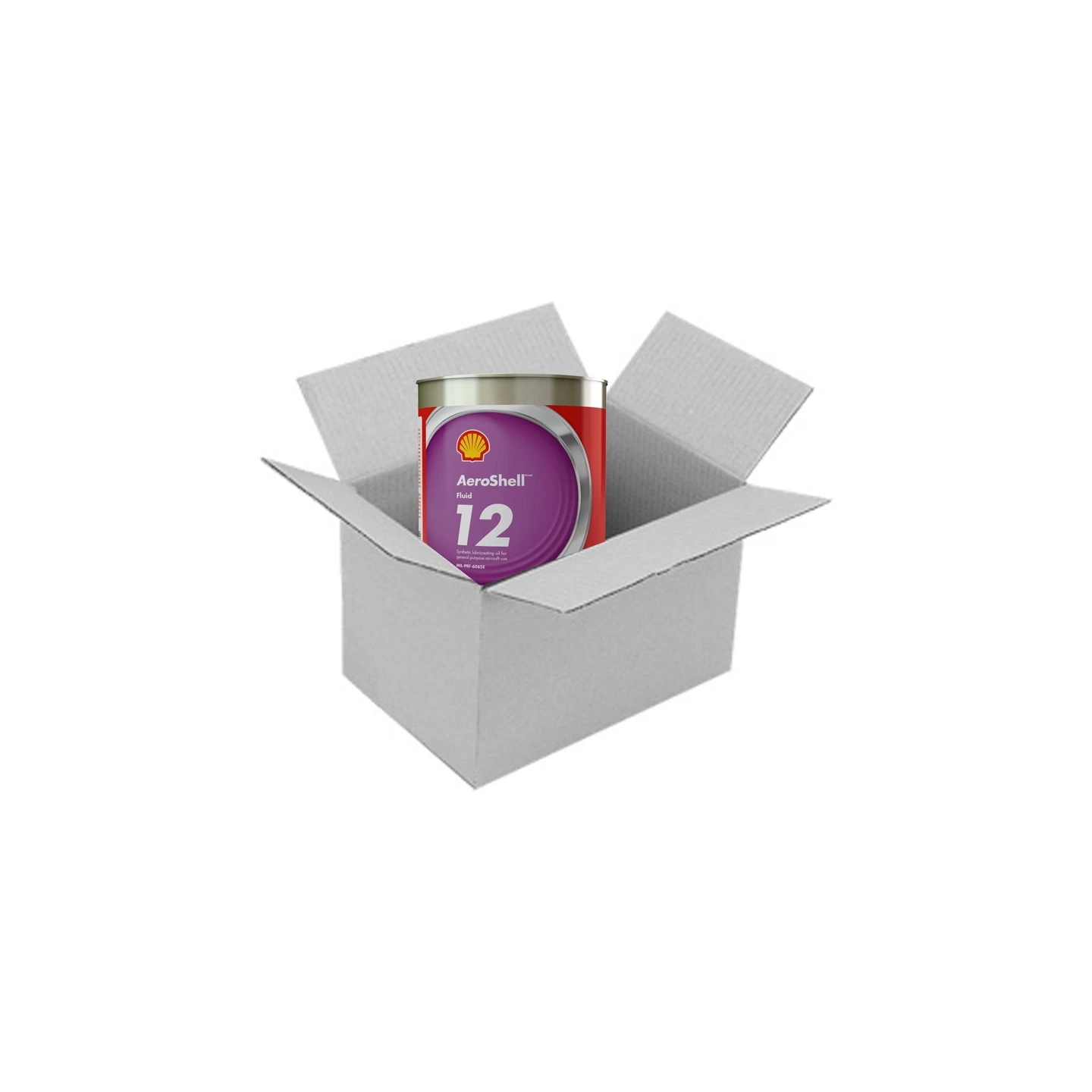

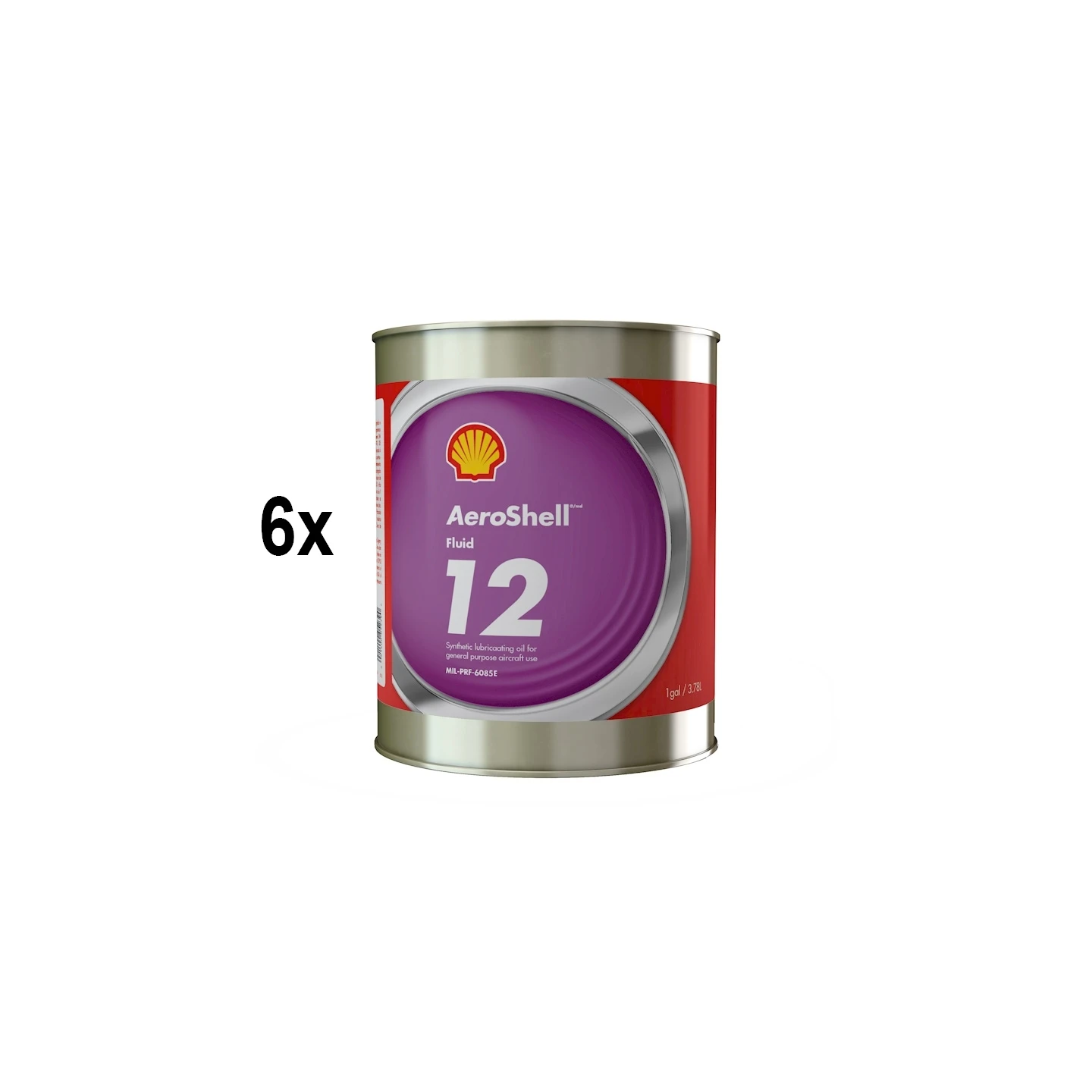

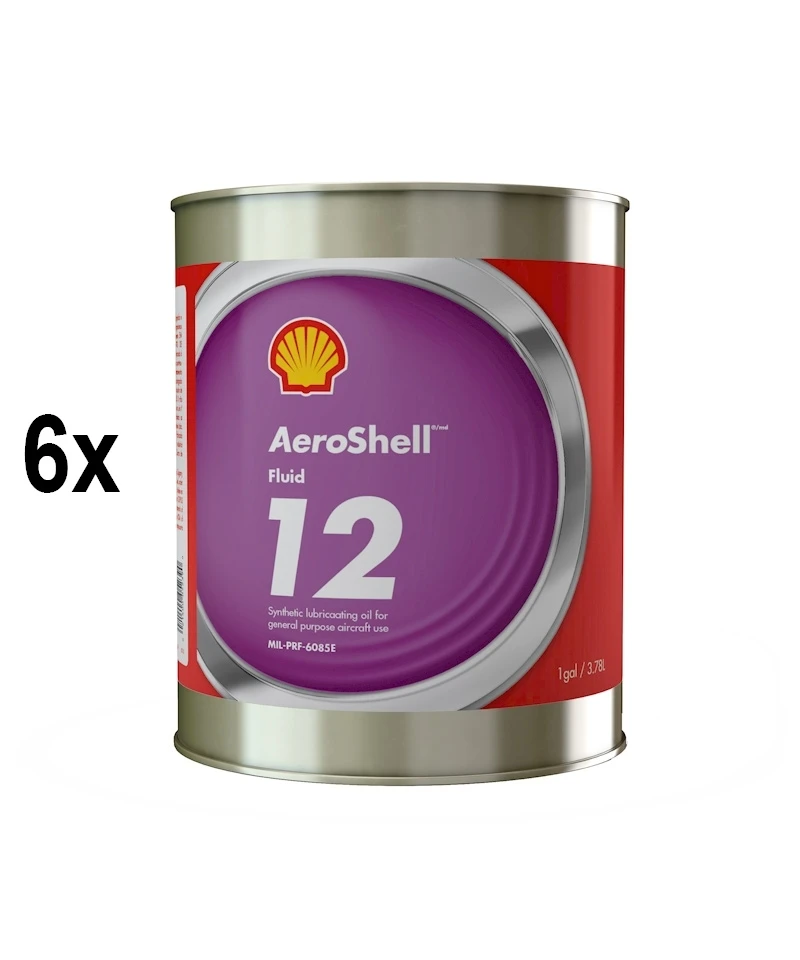

Quantity: Box with 6x 1 AG Can (1 AG = 3.79 lliters)
